BYG · Spain

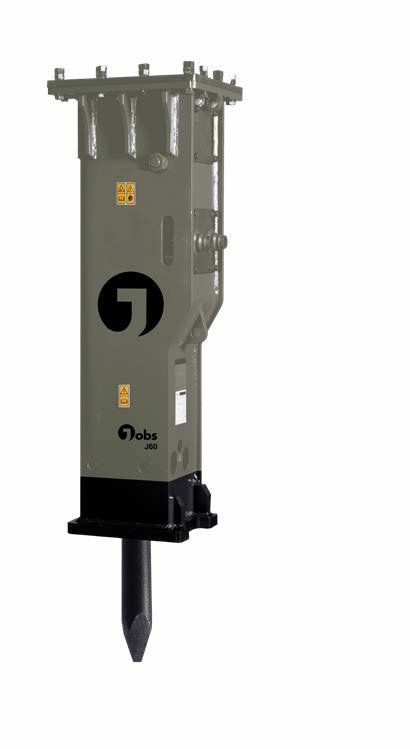

BYG hydraulic hammers — the full J series.
Twenty-seven models built at Molins de Rei outside Barcelona, covering carriers from 0.4 tonne up to 140 tonne. Every figure below is from the current BYG implements catalogue — weights, tool diameters, oil flow, blow rate and impact energy, model by model. Rock breakers and hydraulic hammers from a 0.4 tonne mini digger to a 140 tonne mining machine, all under the JOBS name.
The four weight classes
Light — J35 to J100
Ten models, 0.4 to 15 tonne carriers. Mini-digger work, footpaths, secondary breaking, small foundations.
Medium — J125 to J165F
Six models, 15 to 40 tonne. The volume end of demolition and quarry work.
Heavy — J175 to J200
Four models, 36 to 60 tonne. Reinforced concrete, hard rock, primary breaking.
Extra heavy — J205 to J258
Seven models, 55 to 140 tonne. Quarry primary and heavy industrial demolition.
Light range
J35 to J100 — 0.4 to 15 tonne.
The small end, and the range most contractors here buy first. Every model in this band runs an inward valve and no accumulator, which keeps the plumbing simple and the maintenance cheap.
J35 to J100 — full specifications (10 models)
| Model | Breaker weight | Tool dia. | Pressure | Oil flow | Blow rate | Impact energy | Carrier |
|---|---|---|---|---|---|---|---|
| J35 | 86.5 kg | 35 mm | 90–120 bar | 12–20 l/min | 800–1,400 bpm | 170 J | 0.4–2 t |
| J40 | 96 kg | 40 mm | 90–120 bar | 15–25 l/min | 800–1,400 bpm | 170 J | 0.8–2.5 t |
| J45 | 123 kg | 45 mm | 90–120 bar | 20–30 l/min | 700–1,200 bpm | 240 J | 1.2–3 t |
| J53 | 161 kg | 53 mm | 90–120 bar | 25–50 l/min | 600–1,100 bpm | 320 J | 2.5–4.5 t |
| J60 | 213 kg | 60 mm | 100–130 bar | 30–60 l/min | 600–1,100 bpm | 450 J | 4–6 t |
| J68 | 269 kg | 68 mm | 110–140 bar | 40–70 l/min | 500–900 bpm | 630 J | 4–7 t |
| J75 | 344 kg | 75 mm | 120–150 bar | 50–90 l/min | 400–800 bpm | 1,110 J | 6–9 t |
| J80 | 344 kg | 80 mm | 120–150 bar | 50–90 l/min | 400–800 bpm | 1,150 J | 6–9 t |
| J85 | 530 kg | 85 mm | 130–160 bar | 60–100 l/min | 400–800 bpm | 1,190 J | 7–14 t |
| J100 | 779 kg | 100 mm | 150–170 bar | 80–110 l/min | 350–700 bpm | 1,720 J | 10–15 t |
Weights are breaker weight; add the tool for service weight (roughly 3 kg on a J35, 30 kg on a J100). Pressures are the catalogue’s kg/cm² figures, which are within 2% of bar. Automatic greasing is available from the J100 up.
Medium range
J125 to J165F — 15 to 40 tonne.
The working middle of the range. Note the F models: the J135F and J165F use an outward valve and sit on a different flow curve to the models either side of them, so do not size by weight alone.
J125 to J165F — full specifications (6 models)
| Model | Breaker weight | Tool dia. | Pressure | Oil flow | Blow rate | Impact energy | Carrier |
|---|---|---|---|---|---|---|---|
| J125 | 1,040 kg | 125 mm | 150–170 bar | 90–120 l/min | 350–650 bpm | 2,530 J | 15–18 t |
| J135F | 1,409 kg | 135 mm | 160–180 bar | 145–180 l/min | 360–460 bpm | 3,900 J | 18–26 t |
| J140A | 1,599 kg | 140 mm | 160–180 bar | 120–180 l/min | 350–550 bpm | 4,200 J | 18–26 t |
| J150 | 1,924 kg | 150 mm | 160–180 bar | 150–190 l/min | 350–700 bpm | 4,826 J | 27–35 t |
| J155 | 2,278 kg | 155 mm | 160–180 bar | 180–240 l/min | 300–450 bpm | 6,791 J | 28–35 t |
| J165F | 2,669 kg | 165 mm | 160–180 bar | 200–250 l/min | 200–380 bpm | 11,833 J | 35–40 t |
Automatic greasing standard-fit option across this band. Underwater kits available on any model.
Heavy range
J175 to J200 — 36 to 60 tonne.
From the J185 up the hammer runs an outward valve and a nitrogen accumulator, which is where the impact energy really climbs — a J200 puts out fifteen times the blow of a J100 at less than half the blow rate.
J175 to J200 — full specifications (4 models)
| Model | Breaker weight | Tool dia. | Pressure | Oil flow | Blow rate | Impact energy | Carrier |
|---|---|---|---|---|---|---|---|
| J175 | 3,258 kg | 175 mm | 160–180 bar | 200–260 l/min | 200–300 bpm | 12,736 J | 36–45 t |
| J185 | 4,381 kg | 185 mm | 180–220 bar | 240–300 l/min | 180–250 bpm | 18,197 J | 42–55 t |
| J195 | 5,025 kg | 195 mm | 200–240 bar | 290–360 l/min | 150–200 bpm | 24,060 J | 48–60 t |
| J200 | 5,788 kg | 200 mm | 200–240 bar | 300–370 l/min | 150–200 bpm | 26,064 J | 48–60 t |
Extra heavy range
J205 to J258 — 55 to 140 tonne.
Quarry primary breaking and heavy industrial demolition. All seven run outward valves, accumulators and 38.1 mm hose, at 230 to 260 bar.
J205 to J258 — full specifications (7 models)
| Model | Breaker weight | Tool dia. | Pressure | Oil flow | Blow rate | Impact energy | Carrier |
|---|---|---|---|---|---|---|---|
| J205 | 5,944 kg | 205 mm | 230–260 bar | 320–390 l/min | 130–170 bpm | 28,512 J | 55–65 t |
| J210 | 6,125 kg | 210 mm | 230–260 bar | 340–420 l/min | 130–170 bpm | 32,136 J | 55–65 t |
| J215 | 6,392 kg | 215 mm | 230–260 bar | 360–460 l/min | 130–170 bpm | 35,122 J | 65–75 t |
| J220 | 7,263 kg | 220 mm | 230–260 bar | 400–500 l/min | 130–170 bpm | 38,458 J | 65–80 t |
| J230 | 7,838 kg | 230 mm | 230–260 bar | 420–540 l/min | 130–170 bpm | 42,736 J | 80–100 t |
| J248 | 9,045 kg | 248 mm | 230–260 bar | 450–550 l/min | 110–150 bpm | 53,724 J | 85–120 t |
| J258 | 10,223 kg | 258 mm | 230–260 bar | 500–600 l/min | 110–140 bpm | 67,654 J | 90–140 t |
Build
What is inside a BYG hammer.
Two valve architectures across the range, and the one you get is decided by model rather than by size — worth knowing before you order seals.
One casing, two architectures
Every J-series hammer is a through-bolted box: front head, frame, cylinder, piston, control valve and back head. The lighter models run an inward valve and no accumulator. From the J185 up the valve moves outward and a nitrogen accumulator sits on top, which is what lifts impact energy from a few thousand joules to sixty-seven thousand.
Inward valve, no accumulator
J35 to J125, plus the J140A, J155, J165F and J175. Simpler build, fewer wear items, cheaper to keep going.
Outward valve with accumulator
J135F, J150, and everything from the J185 up. Nitrogen accumulator stores energy between blows — that is where the big impact figures come from.
ABF anti-blank-fire
Stops the hammer firing into fresh air when the tool breaks through. Cuts vibration into the carrier, cuts wear on the through bolts and front head, and saves you a rebuild.
Automatic greasing
Available from the J100 up. Metered grease, continuously — no stopping to hand-grease and no hammer running dry because someone forgot.
Underwater kit
Any model can be kitted for underwater work. Compressed air is fed through an integrated port to keep water out of the percussion chamber.
Tools
Chisels and points, model by model.
Tool weight and length for every model in the range. Diameter A is the tool shank; length L is the overall tool. All BYG tools are through-hardened special alloy.
Tool weights and lengths (27 models)
| Model | Tool dia. | Tool weight | Tool length |
|---|---|---|---|
| J35 | 35 mm | 3 kg | 500 mm |
| J40 | 40 mm | 4 kg | 530 mm |
| J45 | 45 mm | 8 kg | 600 mm |
| J53 | 53 mm | 9 kg | 580 mm |
| J60 | 60 mm | 12 kg | 600 mm |
| J68 | 68 mm | 18 kg | 700 mm |
| J75 | 75 mm | 24 kg | 755 mm |
| J80 | 80 mm | 26 kg | 755 mm |
| J85 | 85 mm | 29 kg | 745 mm |
| J100 | 100 mm | 57 kg | 1,000 mm |
| J125 | 125 mm | 94 kg | 1,130 mm |
| J135F | 135 mm | 115 kg | 1,200 mm |
| J140A | 140 mm | 126 kg | 1,300 mm |
| J150 | 150 mm | 157 kg | 1,300 mm |
| J155 | 155 mm | 190 kg | 1,500 mm |
| J165F | 165 mm | 215 kg | 1,500 mm |
| J175 | 175 mm | 255 kg | 1,600 mm |
| J185 | 185 mm | 287 kg | 1,600 mm |
| J195 | 195 mm | 304 kg | 1,650 mm |
| J200 | 200 mm | 315 kg | 1,650 mm |
| J205 | 205 mm | 347 kg | 1,800 mm |
| J210 | 210 mm | 365 kg | 1,800 mm |
| J215 | 215 mm | 384 kg | 1,800 mm |
| J220 | 220 mm | 427 kg | 1,800 mm |
| J230 | 230 mm | 479 kg | 1,900 mm |
| J248 | 248 mm | 590 kg | 1,900 mm |
| J258 | 258 mm | 662 kg | 2,000 mm |
Tool shapes
Conical point
General purpose, and what most hammers leave here with. Best in hard rock and mass concrete.
Pyramid
Concrete work. Spreads the blow rather than punching a hole straight through.
Blunt
Hard rock and boulder busting. No point to snap off.
Trenching chisel
Narrow, for cutting a line rather than breaking a hole.
Wide chisel
Asphalt and slabs — lifts a strip in one pass.
Pile driver tool
Turns the hammer into a driver for posts and sheet piles.
We stock and supply tools for every model, and we can re-point and re-harden a worn tool rather than sell you a new one where it is worth doing.
Extras
Kits worth having.
Four things BYG sell alongside the hammer that are usually cheaper ordered at the same time than fitted later.
Charging kit
Nitrogen charging kit for the accumulator and back head. If you run a hammer with an accumulator, you want one on the van.
Base plate
Mounting plate made up to your carrier or quick-hitch. We make these up here.
Spare tools
Two spare tools ordered with the hammer — the second one is what keeps you working when the first one is away being re-pointed.
Tool box
Chisel retaining pins, bushings and the bits that go missing on site.
Extreme-temperature kits are available for heat and cold, and for dusty environments the compressed-air port fitted to every model keeps the percussion chamber clear.
The rest of the range
BYG do more than hammers.

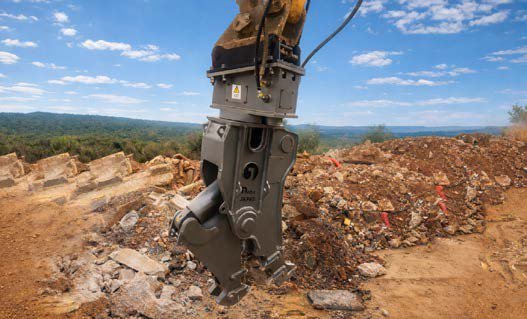

The same catalogue covers shears, crushers, pulverizers, grapples and thumbs — all mounted on the same carriers, all through us.
Tell us the carrier and the job.
We’ll tell you the right tool.
Tell us the make, model and weight of the carrier and what you’re breaking. We’ll come back with the breaker that suits it and a price — usually the same working day.
