BYG · Spain

BYG crushers and pulverizers.

Three families covering 5 to 45 tonne carriers — double-cylinder crushers for primary demolition, rotating pulverizers for secondary work, and fixed pulverizers including two magnet versions for pulling rebar straight out of the crush. Crushers and pulverisers — pulverizers in the BYG catalogue — for concrete reduction and rebar separation on 5 to 45 tonne machines.

Primary — JSDH

Two cylinders, HARDOX jaws and rear blades that cut rebar inside the concrete. 6 to 45 tonne.

Secondary — JRP

360° rotating pulverizer for downsizing and clean-up. 5 to 40 tonne.

Fixed — JFP

Simpler, cheaper, and available with a 600 mm magnet on the M models. 6 to 35 tonne.

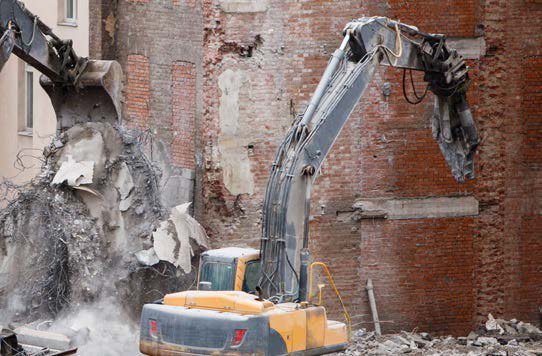

BYG crusher taking down a masonry structure

Double cylinder crusher

JSDH56 to JSDH320 — 6 to 45 tonne.

Two cylinders instead of one, which is what lets it hold a bite on reinforced concrete rather than skating off it. Rear jaw blades cut the reinforcing steel inside the pour, so you are not stopping to burn it out. Built in HARDOX with speed-valve cylinders and full 360° rotation.

Two cylinders, one bite

One cylinder pushes, the other holds. That is what stops the jaw walking off a reinforced pour halfway through the crush — and why the rear blades get a chance to cut the rebar rather than bend it.

Model	Body weight	Max opening	Blade length	Rotation dia.	Oil flow	Pressure	Carrier
JSDH56	535 kg	600 mm	135 mm	φ360 mm	100–150 l/min	250–280 bar	6–9 t
JSDH130	1,300 kg	630 mm	180 mm	φ593 mm	160–250 l/min	260–300 bar	12–18 t
JSDH200	2,230 kg	1,060 mm	200 mm	φ752 mm	230–280 l/min	300–320 bar	20–30 t
JSDH290	2,320 kg	1,100 mm	200 mm	φ752 mm	230–280 l/min	300–320 bar	25–35 t
JSDH320	4,032 kg	1,485 mm	240 mm	φ806 mm	300–350 l/min	300–320 bar	30–45 t

Reinforced concrete buildings, bridges, hardened walls and high-rise — the large-scale structures where a hammer alone would take a fortnight.

Rotating pulverizer

JRP67 to JRP280 — 5 to 40 tonne.

Secondary demolition and recycling. Crushing force is quoted three ways, and the numbers that matter are the middle and tip figures — that is what you get where the material actually sits, not at the pivot.

Rotation where it matters

Secondary work means constantly re-presenting the tool to material that has already fallen. A rotating head does that without the operator tracking the machine round every time.

Model	Body weight	Opening	Blade	Oil flow	Crushing force	Mid / tip force	Carrier
JRP67	670 kg	510 mm	140 mm	100–150 l/min	800 kN	430 / 300 kN	5–10 t
JRP140	1,400 kg	700 mm	180 mm	120–180 l/min	1,500 kN	735 / 565 kN	12–18 t
JRP220	2,250 kg	750 mm	180 mm	200–250 l/min	1,900 kN	915 / 750 kN	20–30 t
JRP280	2,660 kg	880 mm	260 mm	200–250 l/min	2,800 kN	1,500 / 900 kN	22–40 t

Rotation motor runs on 40–60 l/min at 120 bar across the whole range, so one rotate circuit spec covers every model.

Pulverizer

JFP80 to JFP245, and the magnet models.

The fixed pulverizer — no rotation, fewer hoses, less to go wrong and a good deal less money. NM400 steel jaw with replaceable teeth, and 360° rotation available as an option if you decide you want it later. The JFPM models add a 600 mm 24V DC magnet for lifting the rebar out as you go.

Fixed, and cheaper for it

No rotate motor, no extra circuit, fewer hoses to snag. NM400 jaw with teeth that bolt off when they are worn. The JFPM models add a 600 mm magnet so the rebar comes out with the crush instead of after it.

Model	Body weight	Opening	Oil flow	Pressure	Crushing force	Magnet	Carrier
JFP80	480 kg	534 mm	100 l/min	200 bar	400 kN	—	6–9 t
JFP230	1,650 kg	830 mm	200 l/min	300 bar	820 kN	—	20–30 t
JFP245	2,050 kg	1,000 mm	200 l/min	320 bar	1,100 kN	—	26–35 t
JFPM189	2,000 kg	800 mm	200 l/min	300 bar	800 kN	φ600 mm, 24V DC	20–24 t
JFPM227	2,330 kg	830 mm	200 l/min	300 bar	820 kN	φ600 mm, 24V DC	26–30 t
