Genesis Attachments
Genesis shears, processors and grapples.
Built in Superior, Wisconsin since 1997 and sold into demolition and scrap yards worldwide. Genesis is an NPK company — the same group that builds the breakers we already supply — so one supplier, one parts line and one phone number covers the whole lot.
Genesis at a glance
Shears to 28.8 tonnes
Nineteen GXT EVO models, from a 650 kg mini-excavator shear up to a 13 tonne scrap shear on a 250 tonne machine.
Bolt-on wear parts
Piercing tips, blades, tooth beds and wear pads bolt on. No grinding, no welding, no crane hire to change a blade in the yard.
12 months / 1,500 hours
Every Genesis tool carries the same warranty — twelve months or fifteen hundred hours, whichever lands first.
One group
NPK and Genesis, one supplier.
Genesis carries the “An NPK Company” mark. That matters to you because the hammer on one machine and the shear on the next come through the same channel — same supplier, same parts enquiry, same person picking up the phone in Ballyclare.
What Genesis covers
Mobile shears, multi-jaw processors, concrete processors and crackers, pulverizers, scrap and handling grapples, plus specialty tools for rail, subsea and rebar work.
What NPK covers
Hydraulic breakers, crushers and crunchers, pulverizers, demolition grabs, compactors and the smaller K-series shears. See the NPK range

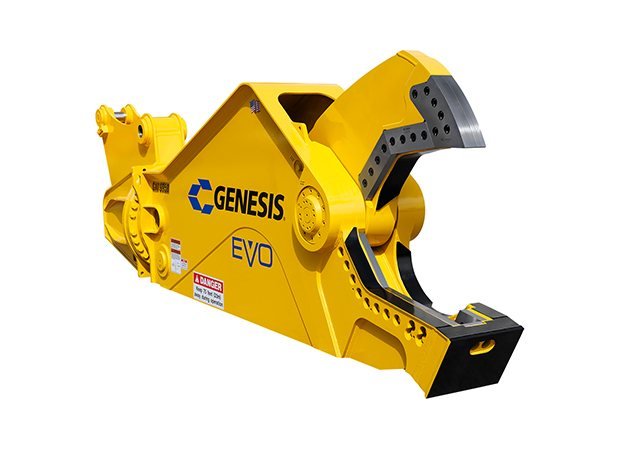

Mobile shears
GXT EVO — the scrap and demolition shear.
The EVO is the current generation of the GXT: same power, fewer weld joints in the stick, a dual-puck pivot that takes stress out of the structure, and blade kits that interchange with existing GXT models so you are not stocking two sets. Carrier weights below are the manufacturer minimums — boom mount first, stick mount second.
Which one fits
Boom-mounted shears sit tight to the machine and suit fixed processing. Stick-mounted (the R models, with extra reach) suit a machine that has to get into a structure. A 3rd-member installation, or a 2nd-member one near the minimum weight, needs sign-off from Genesis before it goes on — we handle that.
Tell us the excavator make, model and operating weight and we will come back with the two or three models that genuinely fit.
GXT EVO models
GXT EVO models
| Model | Weight | Jaw opening | Min. carrier (boom) | Min. carrier (stick) |
|---|---|---|---|---|
| GXT 07R EVO | 650 kg | 305 mm | 5.4 t | 7.3 t |
| GXT 245 EVO | 2,040 kg | 455 mm | 11 t | 16 t |
| GXT 245R EVO | 2,360 kg | 455 mm | 14 t | 20 t |
| GXT 335 EVO | 3,040 kg | 585 mm | 12 t | 20 t |
| GXT 335R EVO | 3,400 kg | 585 mm | 17 t | 30 t |
| GXT 445 EVO | 4,540 kg | 710 mm | 18 t | 34 t |
| GXT 445R EVO | 5,220 kg | 710 mm | 23 t | 41 t |
| GXT 555 EVO | 5,440 kg | 760 mm | 23 t | 41 t |
| GXT 555R EVO | 6,120 kg | 760 mm | 25 t | 50 t |
| GXT 665 EVO | 6,210 kg | 815 mm | 25 t | 50 t |
| GXT 665R EVO | 6,890 kg | 815 mm | 31 t | 54 t |
| GXT 775 EVO | 7,140 kg | 915 mm | 31 t | 61 t |
| GXT 775R EVO | 8,120 kg | 915 mm | 36 t | 68 t |
| GXT 775 HD EVO | 8,160 kg | 840 mm | 36 t | 77 t |
| GXT 775R HD EVO | 9,070 kg | 840 mm | 45 t | 82 t |
| GXT 995 EVO | 8,800 kg | 990 mm | 41 t | 77 t |
| GXT 995R EVO | 9,710 kg | 990 mm | 45 t | 82 t |
| GXT 1555 EVO | 11,340 kg | 1,090 mm | 50 t | 86 t |
| GXT 1555R EVO | 13,060 kg | 1,090 mm | 66 t | 113 t |
Weights include the mounting bracket. Converted from the manufacturer’s imperial figures and rounded — we will confirm exact numbers against the current Genesis spec sheet before you order.
Genesis also build the original GXT and the GXP mobile shear, the GDP DemoPro demolition processor, the GSS subsea shear for decommissioning work, and the GRS rebar and GLS linkage shears. Ask and we will price any of them.

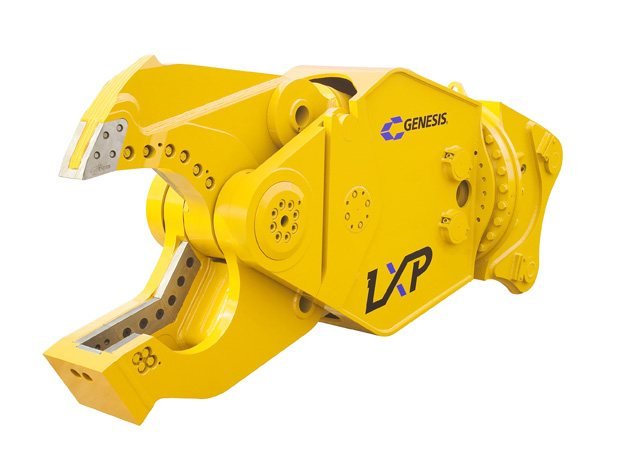

Multi-jaw processors
LXP — one body, three jaw sets.
Buy the body once and change the jaw to suit the job: a shear jaw for steel, rebar and aluminium, a concrete cracker jaw for primary demolition, or a pulverizer jaw for downsizing and clean-up. Each jaw set has its own pivot geometry, so you get the right power curve rather than a compromise. The bolt-on piercing tip changes in minutes with no grinding or welding, and the regeneration valve cuts cycle time by up to a third.
Reading the table
CC is the concrete cracker jaw, CP the pulverizer jaw. Notice the jaw opening jumps on the cracker and pulverizer jaws — an LXP 800 CC opens to 1,805 mm, more than enough to take a bridge deck in one bite, while the shear jaw on the same body opens 1,015 mm but bites far harder.
Four-way indexable guide, razor and primary blades give four usable cutting edges before a blade is scrap.
LXP models and jaws
LXP models and jaws
| Model | Weight | Jaw opening | Min. carrier (boom) | Min. carrier (stick) |
|---|---|---|---|---|
| LXP 200 Shear | 2,440 kg | 430 mm | 9.1 t | 20 t |
| LXP 200 CC | 2,560 kg | 965 mm | 9.1 t | 20 t |
| LXP 200 CP | 2,570 kg | 735 mm | 9.1 t | 20 t |
| LXP 300 Shear | 3,450 kg | 560 mm | 20 t | 32 t |
| LXP 300 CC | 3,430 kg | 1,090 mm | 20 t | 32 t |
| LXP 300 CP | 3,300 kg | 890 mm | 20 t | 32 t |
| LXP 400 Shear | 5,020 kg | 610 mm | 27 t | 45 t |
| LXP 400 CC | 5,060 kg | 1,195 mm | 27 t | 45 t |
| LXP 400 CP | 5,110 kg | 965 mm | 27 t | 45 t |
| LXP 500 Shear | 5,850 kg | 685 mm | 32 t | 54 t |
| LXP 500 CC | 5,770 kg | 1,295 mm | 32 t | 54 t |
| LXP 500 CP | 5,540 kg | 1,090 mm | 32 t | 54 t |
| LXP 800 Shear | 7,940 kg | 1,015 mm | 41 t | 68 t |
| LXP 800 CC | 7,980 kg | 1,805 mm | 41 t | 68 t |
| LXP 800 CP | 8,040 kg | 1,550 mm | 41 t | 68 t |
Alongside the LXP, Genesis build the GRX Razer X multi-jaw demolition tool and the GVP 07 for mini-excavators and skid steers — the GVP takes shear, concrete cracker, grapple or wire-cutter jaws on a carrier small enough to work inside a building.
Concrete processors
Crushing, cracking and pulverizing.
Four families, and which one you want comes down to whether the tool is doing primary demolition, secondary downsizing or both.

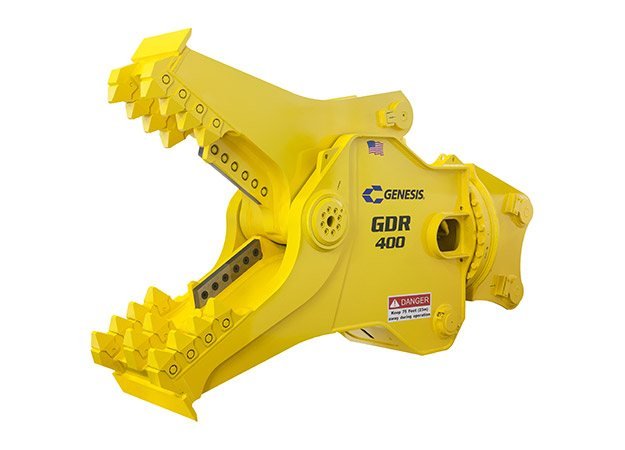

GDR Demolition Recycler
The all-rounder, and the one that suits high-reach work as well as ground level. Available with concrete cracker, pulverizer or shear jaws on the 150, 200 and 300, and cracker or pulverizer on the 400. Reverse-mounted cylinder keeps the rod out of the debris; indexable blades give two cutting edges.
Full specifications (4 models)
| Model | Weight | Jaw opening | Jaw depth | Min. carrier |
|---|---|---|---|---|
| GDR 150 | 1,560 kg | 660 mm | 635 mm | 13 t |
| GDR 200 | 2,490 kg | 890 mm | 815 mm | 20 t |
| GDR 300 | 3,580 kg | 1,090 mm | 990 mm | 32 t |
| GDR 400 | 4,990 kg | 1,220 mm | 1,040 mm | 45 t |

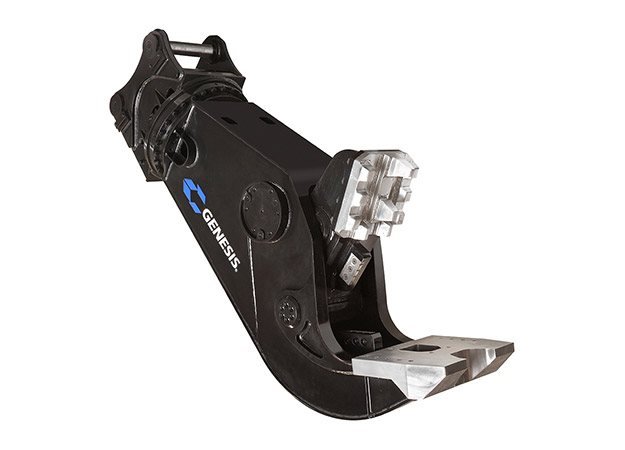

GCP Concrete Processor
Big jaw, big crushing force, no intensifier needed — the power comes from a protected large-bore cylinder, and a regeneration valve improves cycle time by up to 33%. One-piece bolt-on tooth bed and one-piece lower wear pad protect the parent steel and swap out quickly. R models add reach.
Full specifications (6 models)
| Model | Weight | Jaw opening | Jaw depth | Jaw width | Min. carrier |
|---|---|---|---|---|---|
| GCP 410 | 2,110 kg | 865 mm | 735 mm | 510 mm | 20 t |
| GCP 410R | 3,020 kg | 865 mm | 735 mm | 510 mm | 25 t |
| GCP 510 | 3,630 kg | 1,040 mm | 875 mm | 710 mm | 32 t |
| GCP 510R | 4,400 kg | 1,040 mm | 875 mm | 710 mm | 41 t |
| GCP 610 | 4,970 kg | 1,245 mm | 1,015 mm | 760 mm | 41 t |
| GCP 610R | 5,400 kg | 1,245 mm | 1,015 mm | 760 mm | 45 t |
GMP D-series mechanical pulverizer
GMP D-series mechanical pulverizer
| Model | Weight | Jaw opening | Jaw depth | Carrier range |
|---|---|---|---|---|
| GMP 50D | 2,110 kg | 915 mm | 635 mm | 18–27 t |
| GMP 70D | 2,290 kg | 1,015 mm | 735 mm | 27–36 t |
| GMP 90D | 2,900 kg | 1,120 mm | 825 mm | 36–50 t |
The GMP is mechanical — it hangs off the stick and uses the machine’s own crowd rather than a dedicated cylinder, which keeps it cheap to run. Weld-in teeth can be rebuilt in place; bolt-in teeth swap in the field. The GCC Concrete Cracker and M7 Concrete Cracker round out the range for pure primary cracking.
Grapples
Severe-duty and handling grapples.
Two different tools that get called the same thing. The GSD is built to take the full breakout force of the machine through a single tine — that is the one for rip-rap, road breaking, demolition sorting and land clearing. The GHG is a rotating handling grab for demolition, C&D and waste, with dual high-torque motors from the GHG 20 up and no case drain line to plumb.

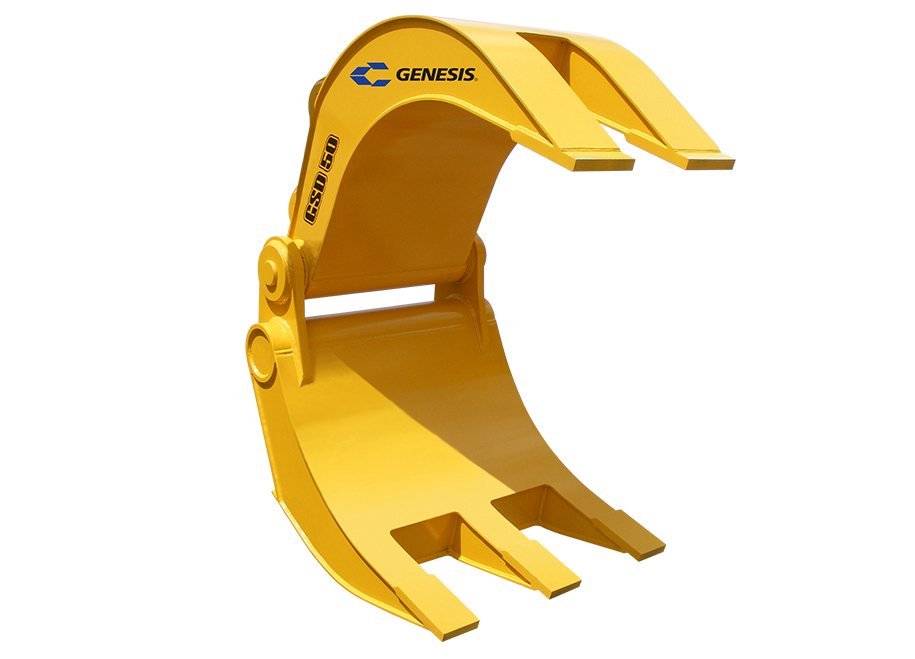

GSD Severe-Duty Grapple
Boxed tine construction, recessed welds so the weld is not the wear surface, and weld-in replaceable Hardox tine tips. Nine sizes from a 250 kg tool on a 4.5 tonne machine to a 7.5 tonne tool on a 127 tonne machine.
Full specifications (9 models)
| Model | Weight | Capacity | Jaw opening | Carrier range |
|---|---|---|---|---|
| GSD 10 | 250 kg | 0.38–0.61 m³ | 1,625 mm | 4.5–9.1 t |
| GSD 30 | 955 kg | 1.15–1.91 m³ | 2,135 mm | 11–14 t |
| GSD 40 | 1,190 kg | 1.53–2.29 m³ | 2,335 mm | 14–18 t |
| GSD 50 | 1,500 kg | 2.29–3.06 m³ | 2,515 mm | 16–29 t |
| GSD 70 | 2,010 kg | 2.68–3.44 m³ | 3,075 mm | 29–39 t |
| GSD 90 | 2,700 kg | 3.44–4.97 m³ | 3,325 mm | 39–54 t |
| GSD 140 | 3,400 kg | 4.97–5.73 m³ | 3,555 mm | 54–77 t |
| GSD 170 | 4,350 kg | 5.73–7.65 m³ | 3,810 mm | 77–100 t |
| GSD 250 | 7,480 kg | 6.50–9.17 m³ | 3,810 mm | 100–127 t |

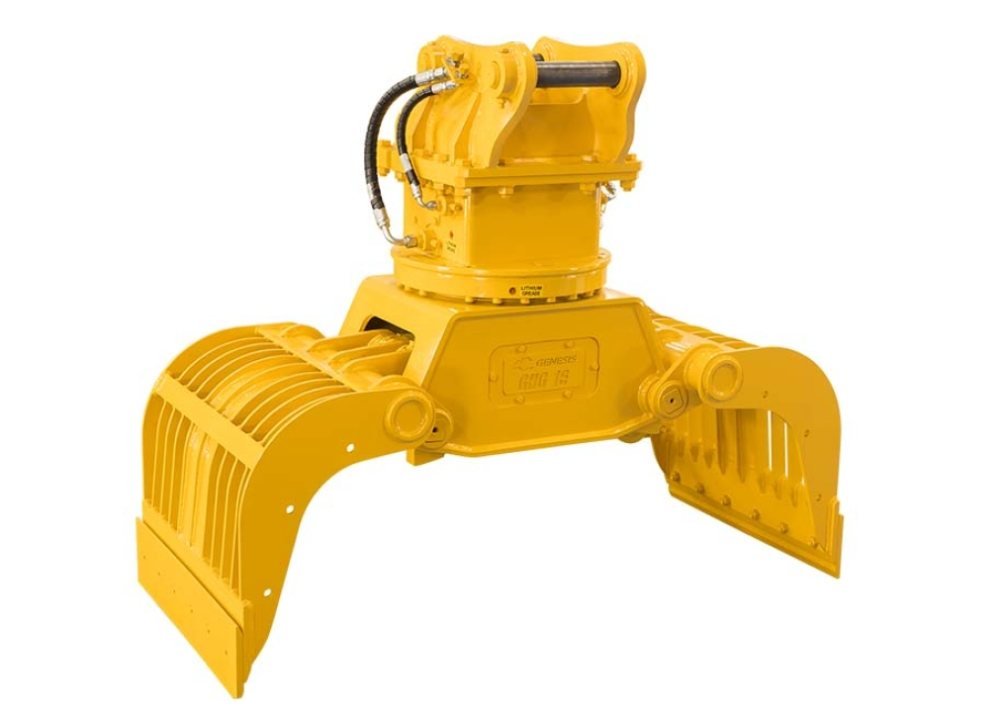

GHG Handling Grapple
Ten sizes, the smallest on a 2.5 tonne machine. Oversized main pins with wear bushings and O-ring seals, a hydraulically cushioned cylinder, and hydraulic connections fully encased so there is less to snag and less to leak.
Full specifications (10 models)
| Model | Weight | Capacity | Jaw open width | Carrier range |
|---|---|---|---|---|
| GHG 4 | 170 kg | 0.09 m³ | 1,145 mm | 2.5–4.1 t |
| GHG 6 | 290 kg | 0.15 m³ | 1,345 mm | 4.1–5.9 t |
| GHG 9 | 450 kg | 0.18 m³ | 1,625 mm | 5.0–9.1 t |
| GHG 14 | 640 kg | 0.31 m³ | 1,805 mm | 6.8–14 t |
| GHG 16 | 875 kg | 0.46 m³ | 1,855 mm | 10–16 t |
| GHG 20 | 1,250 kg | 0.50 m³ | 2,055 mm | 14–20 t |
| GHG 25 | 1,450 kg | 0.61 m³ | 2,160 mm | 16–26 t |
| GHG 30 | 1,850 kg | 0.76 m³ | 2,415 mm | 18–30 t |
| GHG 40 | 2,050 kg | 0.92 m³ | 2,415 mm | 25–40 t |
| GHG 50 | 2,500 kg | 1.07 m³ | 2,440 mm | 35–50 t |
GHG weights exclude the mounting bracket; GSD weights include bracket and stiff arm. Genesis also build the GSG scrap grapple and the GSD C-series.
Specialty
Tools built for one job.
Not everything Genesis make is a general-purpose attachment. If you are on rail, offshore decommissioning or rebar processing, there is a purpose-built tool.
GRP Rebar Processor
Purpose-built for cutting and processing rebar out of demolished concrete.
GRB Rail Breaker
Cuts and breaks rail in situ for track renewal work.
GSS Subsea Shear
GXT-based shear built for offshore decommissioning.
GRX Razer X
Multi-jaw demolition tool — a step up in jaw change speed.
GVP 07
Mini-excavator and skid-steer processor with four jaw options.
GDP DemoPro
Demolition processor with steel-tip option for heavy primary work.
Buying one
What we need from you.
Genesis tooling is specified against the machine, not bought off a shelf. Get us these four things and we will come back with a shortlist and a price.
The machine
Make, model and operating weight, and whether the tool is going on the boom, the stick or a third member. Third-member fits need Genesis approval — we get that for you.
The work
Structural steel, reinforced concrete, scrap, waste sorting or rail. A shear that suits a scrap yard is the wrong tool on a bridge deck.
The hydraulics
Available flow and pressure, and whether the machine already has a rotate circuit and a return line back to tank.
The bracket
Pin-on or quick-hitch, and which hitch. We make brackets up here rather than sending you away to find someone.
Every Genesis tool is covered for twelve months or 1,500 hours, whichever comes first. We stock wear parts and blades, and we service what we sell — see service and repair.
Tell us the carrier and the job.
We’ll tell you the right tool.
Tell us the four things above — the machine, the work, the hydraulics and the bracket. We’ll come back with the Genesis model that fits and a price.
Ballyclare, Co. Antrim, BT39 9EB
