GB vibro ripper and vibro hammer.
Two ranges for work a breaker is the wrong tool for. The GVR ripper tears soft rock and hard ground apart with far less noise and vibration than hammering it. The GVH drives and extracts sheet and pile straight off the excavator, with no crane on site.

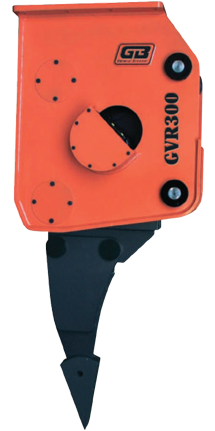

VIBRO RIPPER
GVR — rip it instead of hammering it.
Three models for 18 to 44 tonne carriers. A special link structure turns the vibration into digging force, which is why these get used on sites where a breaker would have the neighbours on the phone.
GVR vibro ripper — full range
| Model | Carrier weight | Operating weight | Frequency | Oil flow | Operating pressure | Height |
|---|---|---|---|---|---|---|
| GVR200 | 18 – 24 t | 2,300 kg | 2,100 vpm | 130 – 150 l/min | 180 – 200 bar | 2,480 mm |
| GVR300 | 25 – 34 t | 2,980 kg | 1,400 vpm | 170 – 190 l/min | 220 – 240 bar | 2,790 mm |
| GVR400 | 35 – 44 t | 3,700 kg | 1,100 vpm | 190 – 210 l/min | 220 – 240 bar | 3,280 mm |
General Breaker’s published table has its unit column out of order; the figures above are set against the units they can only belong to. We check every order against the factory sheet before it is placed — ring and we will confirm the numbers for the model you are looking at.

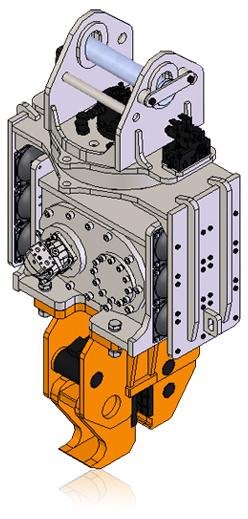

VIBRO HAMMER
GVH — sheet and pile without a crane.
Three models for 20 to 40 tonne carriers. Connects directly to the excavator and runs off the breaker pipework you already have, with 360° rotation and a 65 mm clamping jaw.
GVH vibro hammer — full range
| Model | Carrier weight | Operating weight | Frequency | Oil flow | Working pressure | Length |
|---|---|---|---|---|---|---|
| GVH2000 | 20 – 28 t | 1,600 kg | 2,000 – 2,500 bpm | 130 – 180 l/min | 180 – 200 bar | 1,857 mm |
| GVH3000 | 28 – 34 t | 1,800 kg | 2,000 – 2,500 bpm | 170 – 200 l/min | 200 – 250 bar | 1,959 mm |
| GVH4000 | 33 – 40 t | 1,900 kg | 2,000 – 2,500 bpm | 200 – 260 l/min | 200 – 250 bar | 2,016 mm |
Extension boom weighs 600 kg on the GVH2000 and 700 kg on the other two. Clamping jaw 65 mm and 2,000–2,500 bpm across the range.
WHERE IT EARNS
Noise, vibration and the neighbours.
Town-centre work, hospital grounds, anywhere near housing — the job often stops being about how fast you can break and starts being about how much complaint you can generate.
A vibro ripper works soft rock, shale, frozen ground and compacted fill at a fraction of the noise of a hydraulic hammer, and without the shock loading that puts a machine in the workshop. On the right ground it also moves more material per hour.
Both ranges run off standard breaker pipework, so if your carrier is already plumbed for a hammer it is usually plumbed for these. We will check the flow and pressure against your machine before anything is ordered.
THE REST OF THE RANGE
Everything else General Breaker builds.
We are Ireland’s only source for General Breaker — thirty-six hydraulic breakers from 0.8 to 150 tonne, plus crushers, pulverizers, grapples and compactors.
See the GB breaker range See the crushers and pulverizers See the grapple range See the plate compactors
Tell us the carrier and the job.
We’ll tell you the right tool.
Tell us the carrier and the ground you’re working. We’ll tell you which unit suits it and what it costs — usually the same working day.
