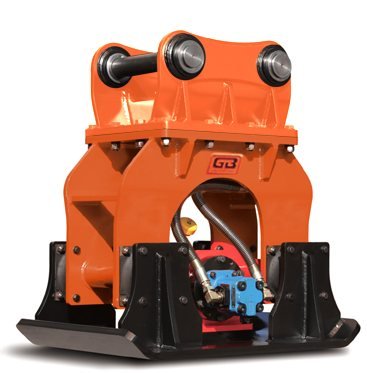

GB plate compactors — GC series.
Four models for carriers from 2 tonne to 35 tonne. Compaction off the machine that dug the trench, instead of a man walking behind a whacker all day.
Match the compactor to the machine.
All four take an all-in-one control valve that blocks the oil flow, and all four are built for the narrow ditch and trench work where a roller cannot go.
| Model | Carrier weight | Weight | Plate size | Vibration | Impact force | Oil flow | Pressure |
|---|---|---|---|---|---|---|---|
| GC04 | 2.0 – 7.0 t | 270 kg | 450 x 725 mm | 2,400 vpm | 1.8 t | 40 – 50 l/min | 90 – 130 bar |
| GC06 | 6.0 – 15 t | 500 kg | 600 x 900 mm | 2,000 vpm | 4 t | 85 – 105 l/min | 100 – 130 bar |
| GC08 | 18 – 25 t | 900 kg | 800 x 1,200 mm | 2,000 vpm | 10 t | 100 – 130 l/min | 120 – 160 bar |
| GC10 | 24 – 35 t | 950 kg | 900 x 1,300 mm | 2,000 vpm | 17 t | 135 – 165 l/min | 130 – 170 bar |
The GC04 and GC06 are in stock on the shop page — ask us for a price. The GC08 and GC10 are quoted to the carrier and the job.
Nobody in the trench.
A compactor on the excavator reaches as deep as the bucket dug, works the batters a roller cannot get near, and does it without putting a man down a hole beside an unsupported face. On backfill over services it is the difference between a day and an afternoon.
High-quality oil pressure across all four models, and high efficiency in narrow ditch and trench work — which is most of what these get used for here.
Ask us to spec oneTHE REST OF THE RANGE
Everything else General Breaker builds.
We are Ireland’s only source for General Breaker — thirty-six hydraulic breakers from 0.8 to 150 tonne, plus crushers, pulverizers, grapples and vibro equipment.
See the GB breaker range See the crushers and pulverizers See the grapple range See the vibro ripper and vibro hammer
Tell us the carrier and the job.
We’ll tell you the right tool.
Tell us the carrier and the ground you’re working. We’ll tell you which unit suits it and what it costs — usually the same working day.
