Tecna · Acquaviva delle Fonti, Italy
The full Tecna breaker range.
Thirteen models across two series, covering carriers from 0.6 tonne to 36 tonne. TBK handles the small end, TSG picks up at 7 tonne and runs to a 3.1 tonne hammer on a 36 tonne machine. Budget rock breakers and hydraulic hammers that still come with hoses, a headstock and our workshop behind them.
The two Tecna series
TBK series — 0.6 to 7 tonne
Six models. Mini diggers, small tracked machines, groundworks, trench work and breaking out floors. The smallest weighs 65 kg and runs on 12 litres a minute.
TSG series — 7 to 36 tonne
Seven models. The working middle and heavy end — site clearance, demolition, quarry work. The TSG 3200 is a 3,149 kg hammer on 200 to 260 litres a minute.
Small carriers
TBK series — 0.6 to 7 tonne.
The range most groundworkers and small plant hirers buy. Light enough not to abuse the machine, and priced so a second hammer is not a big decision.
Sized for the machine, not squeezed onto it
An undersized breaker gets thrashed and an oversized one shakes the carrier to pieces. The TBK spread is close enough together that there is usually a model that lands properly on your machine rather than near it.
Tell us the carrier weight and the available flow and we will put you on the right one.
| Model | Carrier | Operating weight | Tool dia. | Oil flow | Pressure | Impact rate | Max input |
|---|---|---|---|---|---|---|---|
| TBK 060 | 0.6–1.6 t | 65 kg | 40 mm | 12–25 l/min | 100–140 bar | 600–1,250 bpm | 5 kW |
| TBK 100 | 0.6–2.5 t | 105 kg | 45 mm | 20–30 l/min | 100–140 bar | 650–1,000 bpm | 6 kW |
| TBK 175 | 1.8–3 t | 173 kg | 49 mm | 30–45 l/min | 100–150 bar | 650–1,000 bpm | 9 kW |
| TBK 195 | 2.5–4.5 t | 180 kg | 55 mm | 35–55 l/min | 100–150 bar | 600–930 bpm | 11 kW |
| TBK 250 | 4.5–6 t | 240 kg | 65 mm | 45–65 l/min | 100–140 bar | 630–950 bpm | 15 kW |
| TBK 320 | 5.5–7 t | 260 kg | 75 mm | 55–75 l/min | 100–150 bar | 700–980 bpm | 19 kW |
Bigger carriers
TSG series — 7 to 36 tonne.
Where Tecna stops being the small-machine option. Seven models from a 375 kg hammer on a 7 tonne machine up to 3,149 kg on a 36 tonne one, with pressures climbing to 230 bar at the top of the range.
Watch the flow, not just the weight
The jump from TSG 1800 to TSG 2400 is the one to look at: oil demand goes from 100–150 l/min to 150–210 l/min. Plenty of 24 to 32 tonne machines will carry a 2400 but will not feed it properly without the right circuit.
Send us the machine model and we will check the flow before anything is ordered.
| Model | Carrier | Operating weight | Tool dia. | Oil flow | Pressure | Impact rate | Max input |
|---|---|---|---|---|---|---|---|
| TSG 400 | 7–10 t | 375 kg | 75 mm | 50–90 l/min | 120–150 bar | 500–900 bpm | 20 kW |
| TSG 700 | 9–14 t | 571 kg | 85 mm | 60–100 l/min | 130–160 bar | 400–800 bpm | 24 kW |
| TSG 1000 | 12–18 t | 986 kg | 100 mm | 80–110 l/min | 150–170 bar | 350–700 bpm | 26 kW |
| TSG 1400 | 16–23 t | 1,357 kg | 125 mm | 90–120 l/min | 150–170 bar | 350–650 bpm | 31 kW |
| TSG 1800 | 20–26 t | 1,730 kg | 135 mm | 100–150 l/min | 160–180 bar | 350–500 bpm | 41 kW |
| TSG 2400 | 24–32 t | 2,318 kg | 150 mm | 150–210 l/min | 180–200 bar | 200–300 bpm | 64 kW |
| TSG 3200 | 30–36 t | 3,149 kg | 165 mm | 200–260 l/min | 210–230 bar | 150–300 bpm | 92 kW |
Figures are Tecna’s published specifications. Exact performance depends on your carrier’s available flow and back pressure — which is the bit worth checking before you buy, not after.
Not just breaking
The tools that go on the same hammer.
Tecna list pile-driver kits and a log-splitter tool that mount to the breaker you already have. Ask and we will check what suits your model.

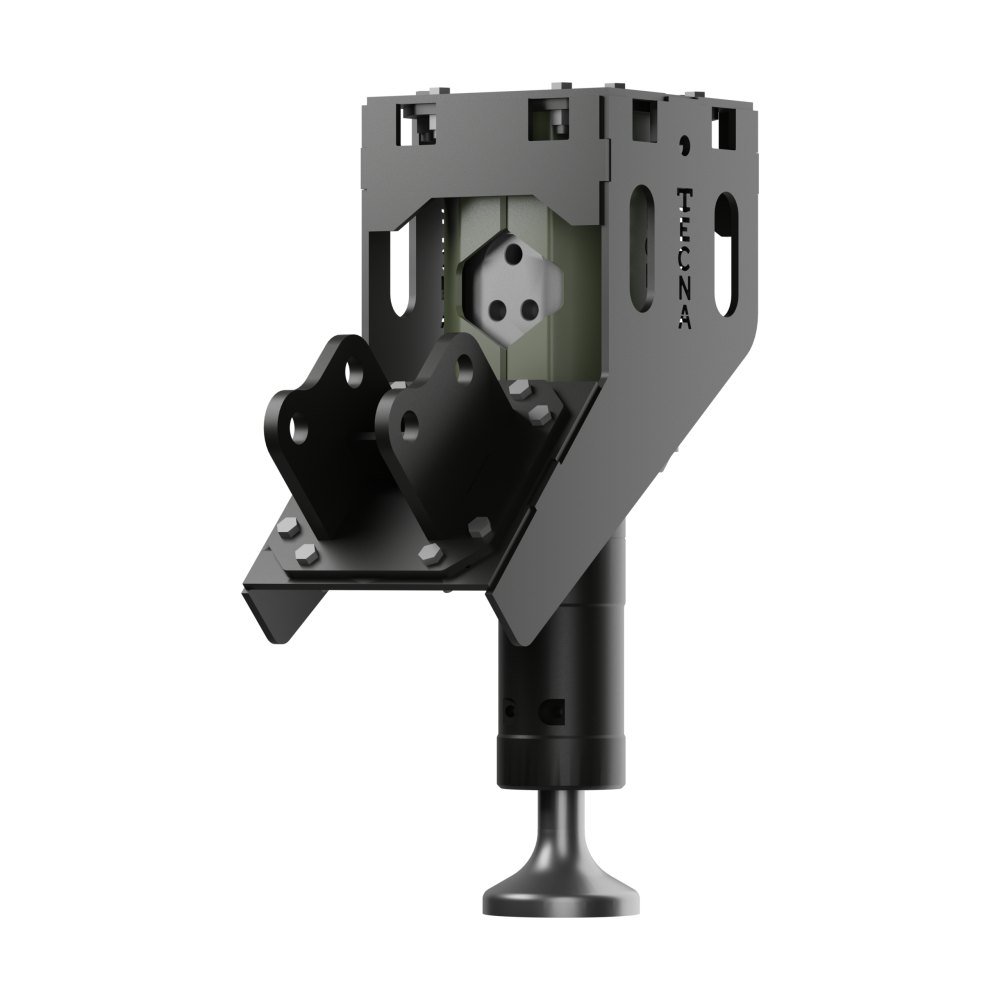

Pile driver kit. Turns the breaker into a post and sheet-pile driver rather than buying a second attachment.
Log splitter tool. Niche, but if you are in forestry or clearance it saves owning a separate machine.
Behind it
Cheap to buy, not cheap to own.
Tecna is the keenest price on our list. That is the point of it, and it is exactly why the backup matters more here rather than less.
Parts on the shelf
Chisels, seal kits, bushes and wear parts stocked in Ballyclare, the same as every other brand we sell.
Serviced here
Rebuilt and repaired in our own workshop. You are not shipping it back to Italy when something goes.
Right size, first time
Undersized breakers get abused and oversized ones wreck the carrier. We spec it to the machine before you buy.
Ring 028 9335 4878 with the carrier make, model and weight and we will tell you which model fits and what it costs.
The rest of the range
Other makes we carry.
Tecna is the value end. If the job wants something heavier or more specialised, these are the alternatives.
Tell us the carrier and the job.
We’ll tell you the right tool.
Tell us the make, model and weight of the carrier and what you’re breaking. We’ll come back with the breaker that suits it and a price — usually the same working day.
